SEK204

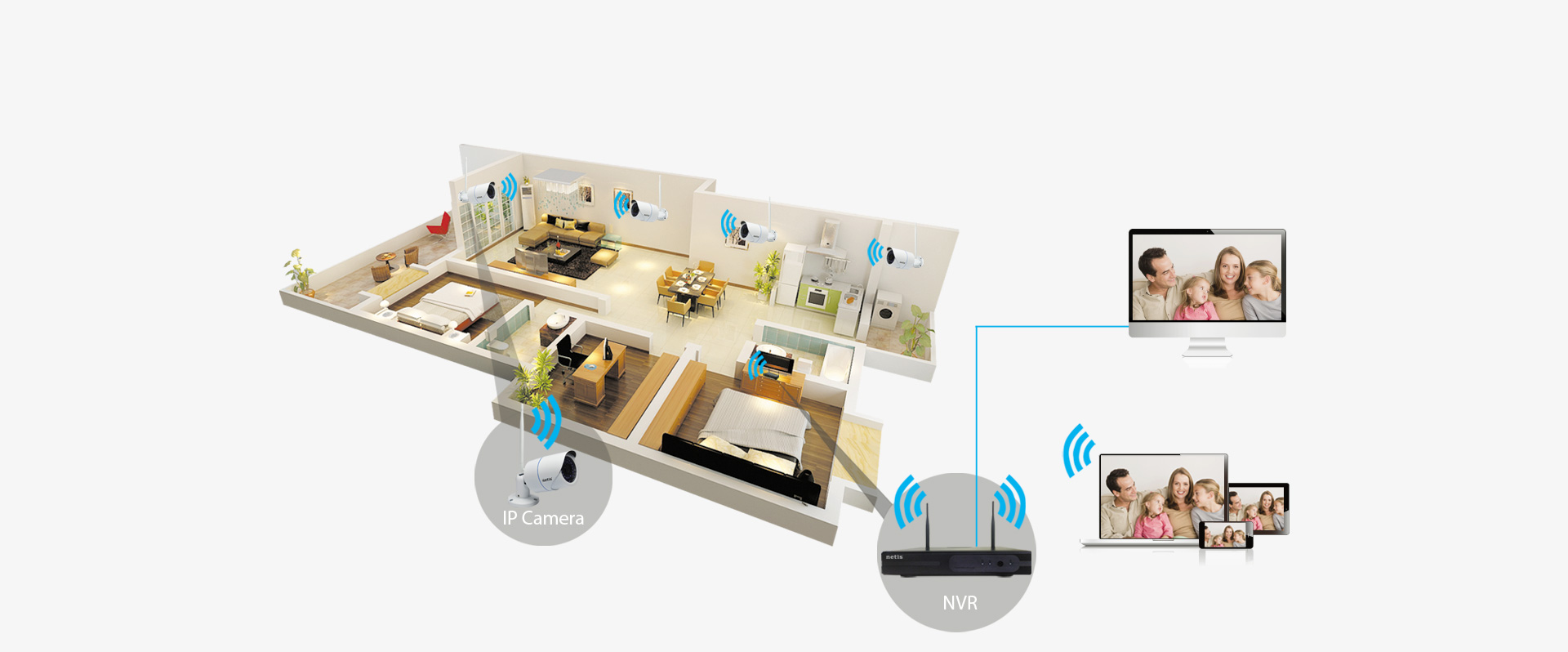

Wireless Security Solution

Stable and Long Distant Wireless Connection960P HD Video Transmission

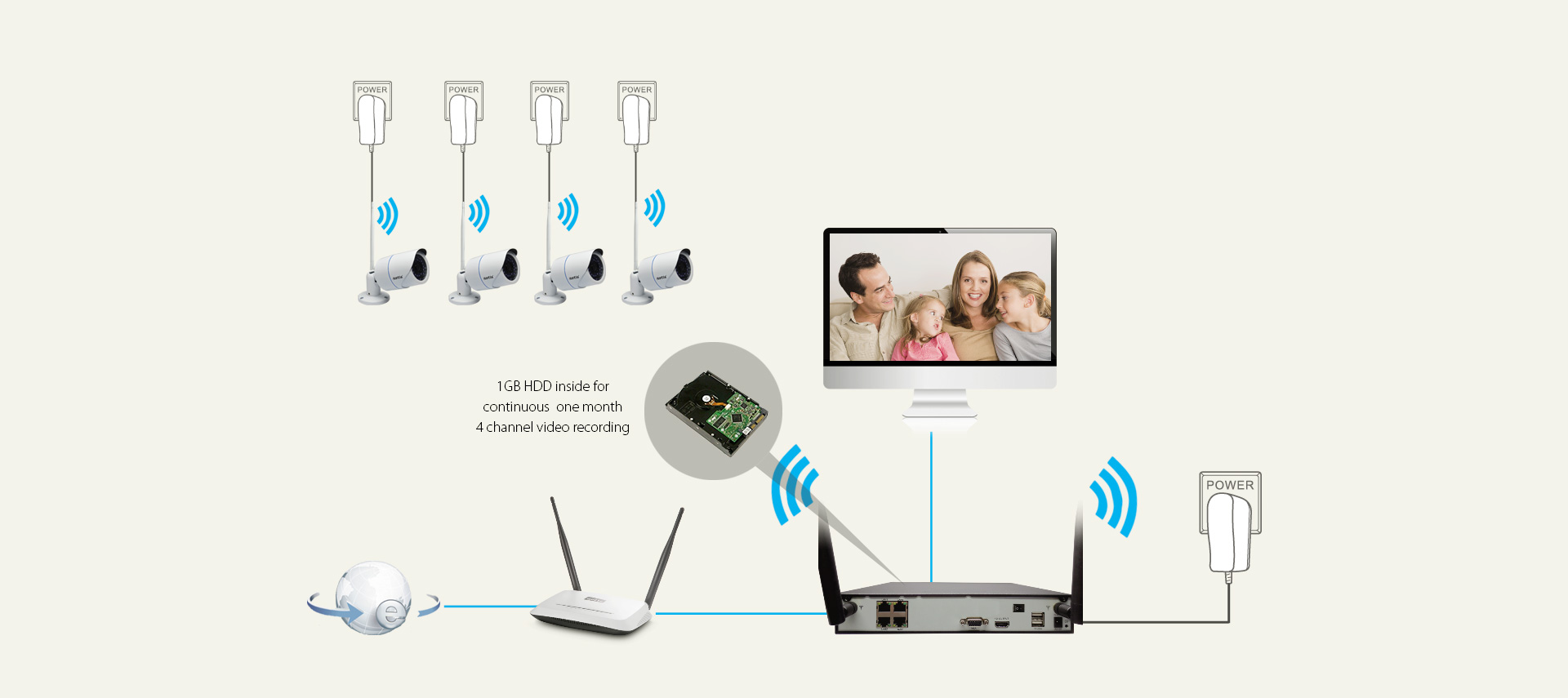

Plug & Play

Wireless Preset Up in This Kit, Smart Choice

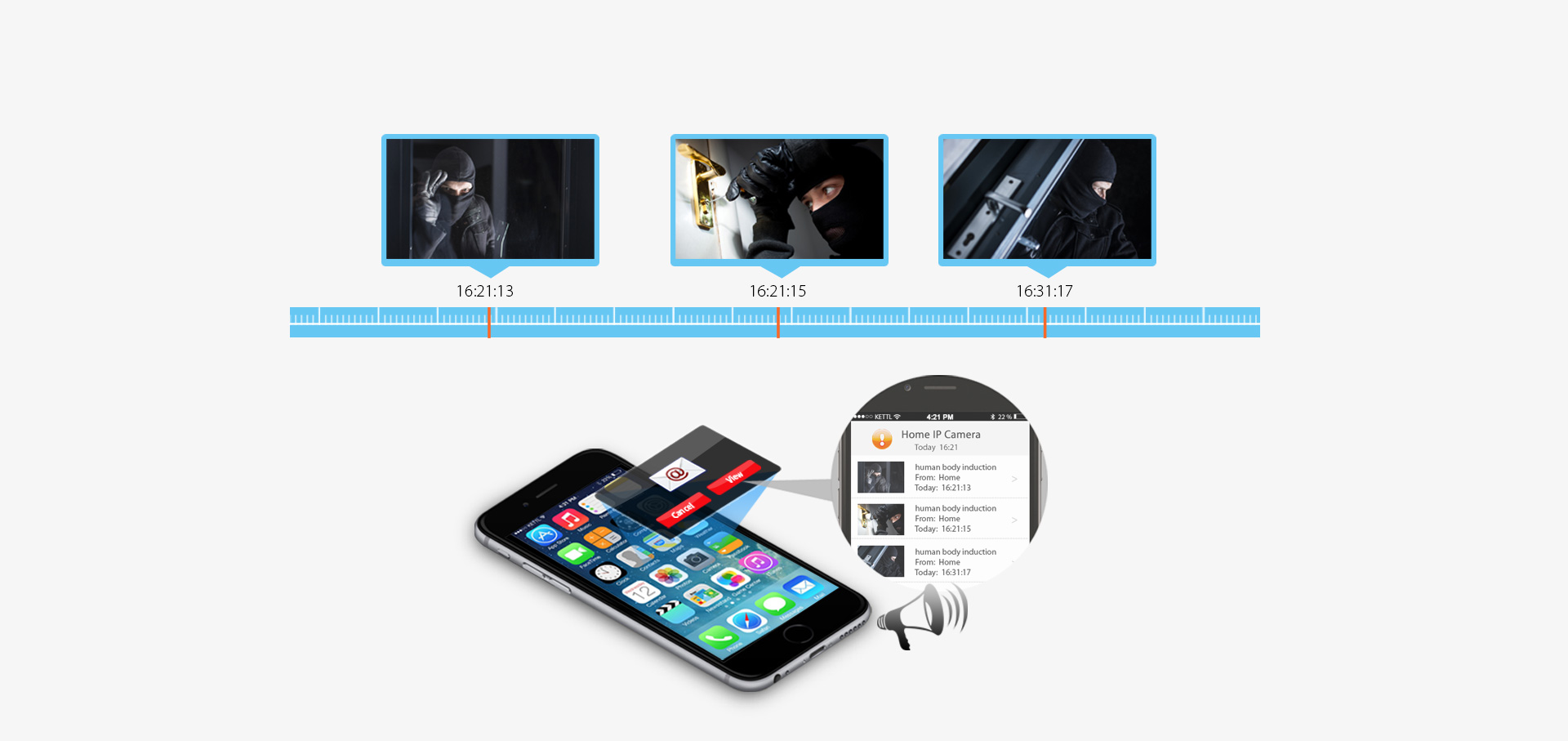

Motion Detection

Get instant alarm and email notifications when any motion is detected during a specific period.

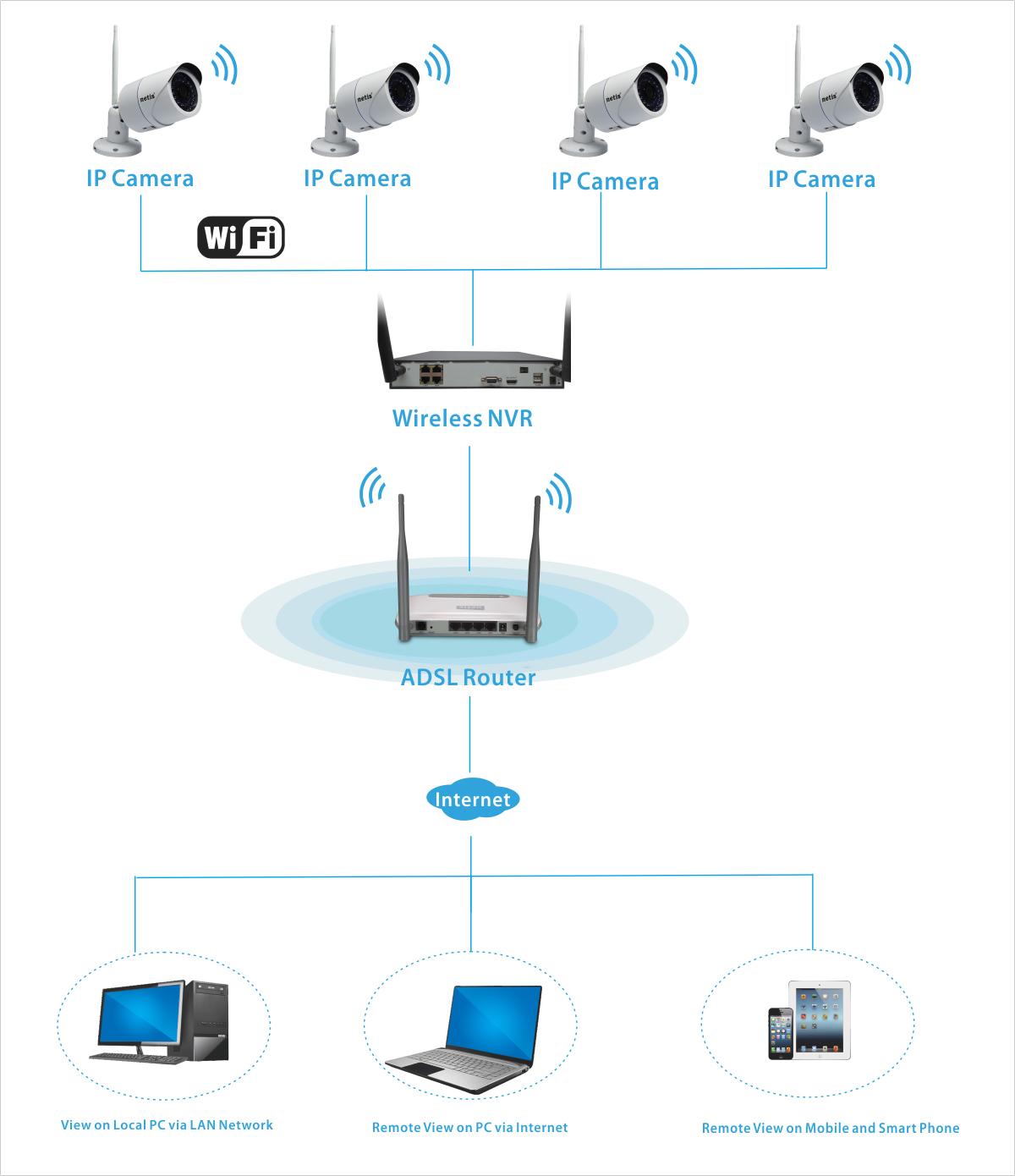

Remote Control

Free APP Support ( iPhone & Android phone)Web Access (All Operating Systems, IE recommended)



4CH Wireless NVR
MODEL No. SEV204
Operating System Embedded Linux operating system
VIDEO/IMAGE
Image Code Control Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream Each channel can set main stream and sub stream
Video Standard 960P(1280*960) 30fps
Monitoring Image Quality 960P(1280*960)
Image Motion Detection Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)
Recording Playback Quality 4ch 960P playback simultaneously
Recording Mode Support manual, auto, dynamic detection, alarm trigger record mode
(Partly needs IPC Support)
Backup Way Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
Recording Storage Local HDD, network
VIDEO INPUT
IP video input 4* (1280*960) IP camera
VIDEO OUTPUT
HDMI Output 1ch, resolution: 1920*1080P/60Hz, 1920*1080P/50Hz,
1440*900, 1366*768, 1280*1024, 1024*768
VGA Output 1ch, resolution: 1920*1080P/60Hz, 1920*1080P/50Hz, 1440*900,
1366*768, 1280*1024, 1024*768
ALARM MANAGEMENT
Events Trigger Built-in motion detection, schedule
Notification Method Alarm, Buzzer, E-mail, FTP
WIRELESS
Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Signal Rate Up to 300Mbps
Frequency Range 2.4-2.4835GHz
Transmit Power 24dBm
Data Transfer Rates 802.11n:
40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
801.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Wireless Security 64/128-bit WEP
WPA/WPA2
WPA-PSK/WPA2-PSK
WPS
HARD DISK
Interface Type 1* SATA interface
Capacity Built-in 1TB SATA HDD (only for Standard Packing) Support up to 4TB SATA HDD for update
INTERFACES
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Network Interfaces 1* 10/100Mbps Auto MDI/MDIX RJ45 WAN port
3* 10/100Mbps Auto MDI/MDIX RJ45 LAN port
USB Interface 2* USB 2.0 Port
LED Indicators Power, Hard Disk,RUN
Antennas 2* 5dBi Detachable Antenna, SMA Connector
Power Supply DC 12V/3A (Output)
SOFTWARE
WAN Type DHCP, Static IP, PPPoE
Port Forwarding Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port
LAN DHCP Client, DHCP Server
Mobile Surveillance Support iPhone, Android smart phone for remote control
Others Time Settings,Firmware Upgrade, Backup & Restore
GENERAL
Certification FCC, CE
Environment Operating Temperature: -10℃~55℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dimensions(L x W x H) 257x210x45mm
960P HD Wireless IP Camera
MODEL No. SEC111
Image Sensor 1/3" Progressive scan CMOS sensor
Min. Illumination 0.1Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter time 1/25s ~ 1/100,000s
Lens 3.6mm@   F2.0
Angle of view:75.7°
Lens Mount C/M12 (optional)
LED 36pcs LED (940nm)
IR Distance 10-15M
Day& Night ICR
Wide Dynamic Range Digital WDR
Digital noise reduction 3D DNR
VIDEO
Image Compression H.264
Image Frame Rate 32 Kbps ~ 16 Mbps
Resolution 960P(1280*720), VGA(640*480), QVGA(320*240)
Stream Dual stream
Frame Rate 50Hz: 25fps (1280*960)
60Hz: 30fps (1280*960)
Image Settings Rotate mode, Saturation, Brightness, Contrast adjustable by
client software or web browser
NETWORK
Network Storage NAS
Alarm Trigger Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect,
IP address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,
RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security User Authentication, Watermark, IP address filtering, anonymous access
System Compatibility ONVIF, PSIA, CGI
WIRELESS
Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Signal Rate Up to 150Mbps
Frequency Range 2.4-2.4835GHz
Transmit Power <20dBm
Data Transfer Rates 802.11n:
40MHz (150Mbps, 135Mbps, 120Mbps, 90Mbps, 60Mbps, 45Mbps, 30Mbps, 15Mbps)
20MHz (72Mbps, 65Mbps, 57Mbps, 43Mbps, 28Mbps, 21Mbps, 14Mbps, 7Mbps) (Auto-Sense)
801.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Wireless Security 64/128-bit WEP
WPA/WPA2
WPA-PSK/WPA2-PSK
WPS
Wireless Range Outdoor: 150m, Indoor(no wall): 50-60m (Depend on environment)
INTERFACES
Network Interface 1* 10/100Mbps Auto MDI/MDIX RJ45 LAN port
Antennas 1* 4dBi Detachable Antenna, SMA Connector
Power Supply DC 12V/1A (Output)
GENERAL
Certification FCC, CE
Environment Operating Temperature: -30℃~60℃
Storage Temperature: -40℃~60℃
Operating Humidity: 10%~95% non-condensing
Storage Humidity: 5%~95% non-condensing
IR Range Up to 10-20m
Dimensions (L x W x H) 205x70x55mm
KIT Package 1* SEV204(With HDD)
4* SEC111
1* 12V/3A Power Adapter
4* 12V/1A Power Adapter
4* Mounting Kits
1* USB Mouse
1* Ethernet Cable
1* Quick Installation Guide
KIT Package Size 403×200×305mm
KIT Weight (Without HDD) 3.5Kg
